Driver Information Center Connector - 2001 Chevy Venture

The Driver Information Center Connector was found taped to the headliner when I upgraded the overhead console. For me, it was a plug-and-play operation because I got a 'new' overhead console from a 2003 Venture.  During my research, I discovered some minor differences that I have noted below.

I don't have any detail as to the inner workings of the DIC, so I do not know what would happen if a older DIC were installed in a newer van (or the other way around).

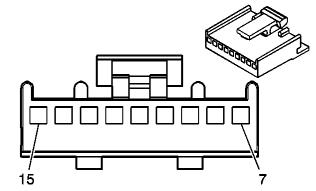

Driver Information Connector

From 2001 Venture Diagram (or 2000 and above)

Pin #

Usage

Circuit

Color

7

Fused Input Feed (Ignition Voltage)

241 Brown

8

Ground

1550 Black

9

Ground

650 Black

10

Outside Temperature Sensor Input

735 Light Green/Black

11

Interior Lamp Dimming Input Feed

8 Gray

12

Not Used

--- ---

13

Not Used

--- ---

14

Fused Input Feed (Batt. Positive Voltage)

640 Orange

15

Class 2 Serial Data Line (Trip/Nav Comp)

1127 Yellow
From 1998 Venture Diagram (possibly 1999 and below)

Pin #

Usage

Circuit

Color

7

Fused Accessory Feed

43 Yellow

8

Ground

1550 Black

9

Vehicle Speed Signal

389 Dark Green

10

Outside Temperature Sensor Signal

735 Light Green/Black

11

Interior Lamp Dim Signal

8 Gray

12

Park Lamp Switch Output - Park Lamps ON

308 Gray/Black

13

Fuel Level Input

136 Yellow

14

Fused Battery Feed

640 Orange

15

UART Serial Data Communications

800 Tan
